Solar PV Cable · H1Z2Z2-K Nominal cross sectional area 6mm²

Solar PV Cable · H1Z2Z2-K Nominal cross sectional area 6mm²

Product No.：202492023238
Online Inquiry

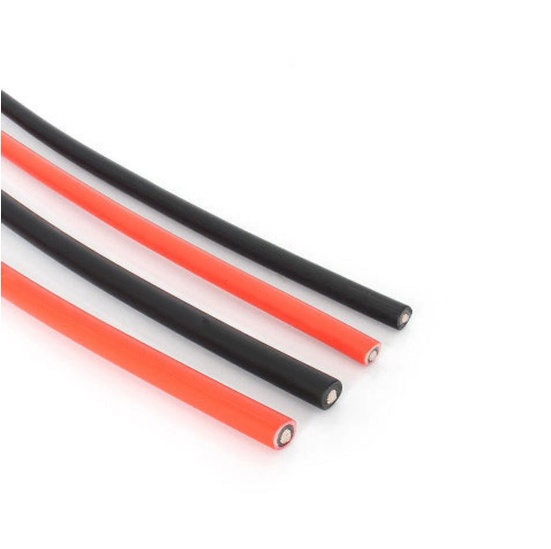

Solar PV Cable · H1Z2Z2-K Nominal cross sectional area 6mm²

1) APPLICATION:

Cable Solar PV fied cables for use in photovoltaic (PV) Systems,in parfticular for installation at the Direct Current(d.c.)side.These cables are suitable for permanent outdoor use for more than 25years under variable demanding climate conditions. Relatively stringent requirements ate set for these products in line with the expected harsh usage conditions.

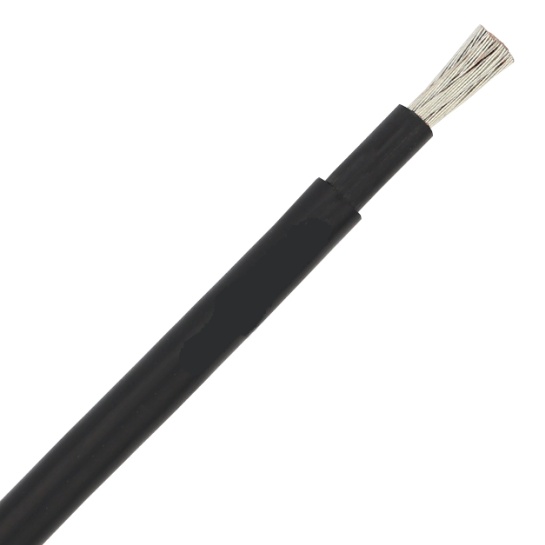

2) CONSTRUCTION:

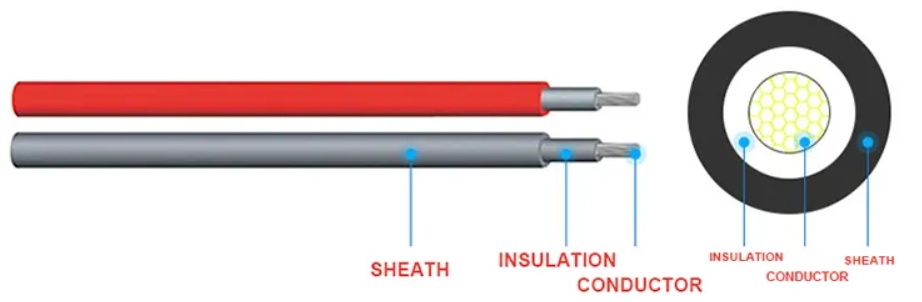

Conductor: Class 5 Flexible Annealed Stranded Tinned Copper Acc. to EN-IEC 60288
Insulation: Low-Smoke Zero-Halogen(XLPO)
Color: Black White
Jacket: Low-Smoke Zero-Halogen(LSZH) Flame Resistance E-beam Cross-linked Compound(XLPO)

3) CHARACTERISTICS:

ELECTRICAL PERFORMANCE
Rated Voltage: DC(U0/U) 1.5/1.5kV
AC(U0/U) 1.0/1.0kV
Max.Permited Operating Voltage: DC(U0/U) 1.8/1.8kV
Spark Test (Under production): 10kV AC
Test Voltage(Finisheh Cable): 6.5kV AC 5 Min

MECHANICAL PERFORMANCE

Minimum Bending Radius: Fixed 5x Outer∅

Ambient Temperature: -40°C to +90°C

Max. Temperature at Conductor: +120°C(20,000 H)

Max. Short-circuit Temperature: +250°C(5 Sec)

Tensile Strength Before Aging: ≥8N/mm2

Elongation Strength Before Aging: ≥125%

Expected Service Life: 30 Years

4) STANDARDS:

EN 50618:2014

62930 IEC 131

5) TESTS:

Low Smoke: EN 61034-2: Table 2

Halogen Free: EN 50525:1 2011Annex B

Ozone Resistance: EN 50396: 2005

UV Resistance/Weathering: EN50298-4-7

Vertical Flame Propagation: EN 60332-1-2: 2004 Annex A

Reaction to fire CPR: EN 50575:2014+A1:2016

Water Resistance: EN 50525-2-21

**DIMENSIONS**
CONDUCTOR CONSTRUCTION N×Max- ∅ [mm]	THICKNESS OF INSULATION SPECIFIED VALUE mm	THICKNESSOF SHEATH SPECIFIED VALUE mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT g/m	MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20℃ ohms/km	MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20℃ ohms/km
84×0.29	0.7	0.8	6.0	78	3.39	4.322
