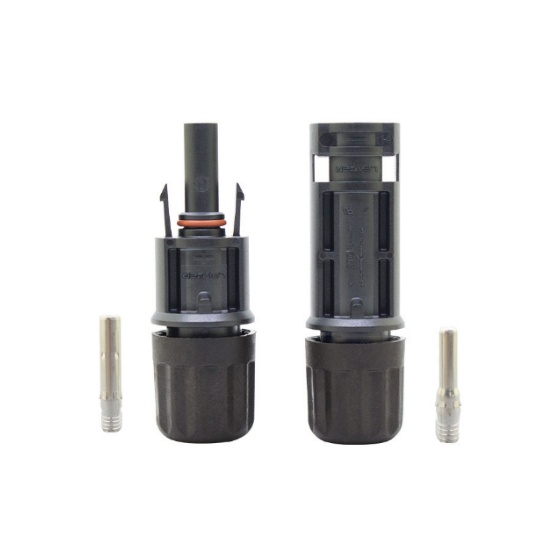

1500V Mc4 Solar Cable Connector

1) Product Overview

1500V Mc4 connectors use high quality materials that guarantee long-term reliability. Lower contact resistance and higher current transfer capability ensure high product efficiency. mc4 connectors have IP68 water-proof rating and can be used in a wide operating temperature range from -40 °C to 90 °C.

2) Technical Data

Rated Voltage	1500V
Rated current	4mm2~6mm2：30A
Temperature range	-40℃~90℃
Waterproof class	Insertion：IP68;Non-insertion：IP2X
Contact resistance	≤0.35mΩ
Conductor	Copper tin-plated
Insulation material	PPO
Safety class	DCⅡ
Flame class	UL94-V0
Certification	IEC 62852; UL 6703
Self-locking system	Embedded
