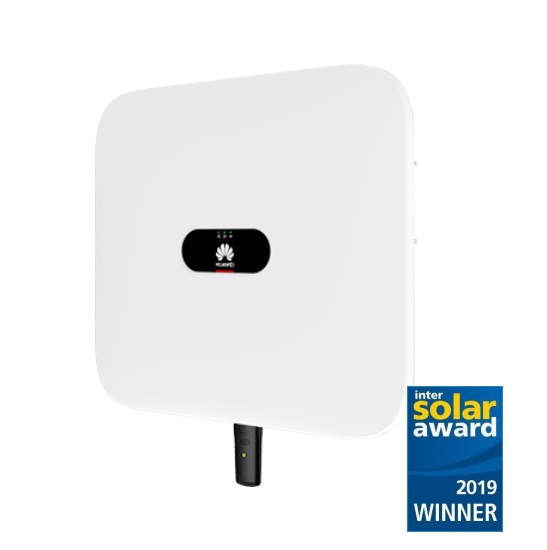

HUAWEI Smart Energy Controller SUN2000-6KTL-M1

Product No.：2024911112353
Online Inquiry

HUAWEI Smart Energy Controller SUN2000-6KTL-M1

Technical Specification

1) Efficiency
Max. efficiency: 98.6%.
European weighted efficiency: 97.7.

2) Input (PV)
Recommended max. PV power¹: 9,000 Wp.
Max. input voltage²: 1,100 V.
Operating voltage range³: 140 V ~ 980 V.
Start-up voltage: 200 V.
Rated input voltage: 600 V.
Max. input current per MPPT: 11 A.
Max. short-circuit current: 15 A.
Number of MPP trackers: 2.
Max. number of inputs: 2.

3) Input (DC Battery)
Compatible Battery: HUAWEI Smart ESS Battery 5kWh – 30kWh.
Max number of connected battery: 2
Voltage range: 600 V ~ 980 V.
Max Input current: 10,000 W.
Max discharge Power: 6,000 W.

4) Output
Rated output power: 6,000 W.
Max. apparent power: 6,600 VA.
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE.
Rated AC grid frequency: 60 Hz.
Max. output current: 10.1 A.
Adjustable powerfactor: 0.8 leading ... 0.8lagging.
Max. total harmonic distortion: ≤ 3 %.
Backup poweroutput: Yes (via Backup Box-B1).

5) Features & Protections
Input-side disconnectiondevice: Yes.
Anti-Islanding protection: Yes.
DC reverse polarityprotection: Yes.
Insulation monitoring: Yes.
DC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643-11.
AC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643-11.
Residual current monitoring: Yes.
AC overcurrent protection: Yes.
AC short-circuit protection: Yes.
AC overvoltageprotection: Yes.
Arc fault protection: Yes.
Ripple receiver control: Yes.
Integrated PIDrecovery ⁴: Yes.
Battery reverse charging from grid: Yes.

6) General Data
Operating temperaturerange: -25 ~ + 60 °C (-13 °F ~ 140 °F).
Relative operating humidity: 0 %RH～100 %RH.
Operating altitude: 0 ~ 4,000 m (13,123 ft.) (Derating above 2000 m).
Cooling: Natural convection.
Display: LED Indicators; Integrated WLAN + FusionSolar App.
Communication: RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional).
Weight (incl. mounting bracket): 17 kg (37.5lb).
Dimension: (incl. mounting bracket) 525 x 470 x 146.5 mm (20.7 x 18.5 x 5.8 inch).
Degree of protection: IP65.

7) Optimizer Compatibility
DC MBUS compatible optimizer: SUN2000-450W-P.

8) Standard Compliance (more available upon request)
Certificate: EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116.
Grid connection standards: AS/NZS4777:2015.

Product description

1) Active Safety: AI Powered Active Arcing Protection.
2) Higher Yields: Up to 30% More Energy with Full Optimizer.
3) Flexible Communication: WLAN, Fast Ethernet, 4G Communication Supported.
