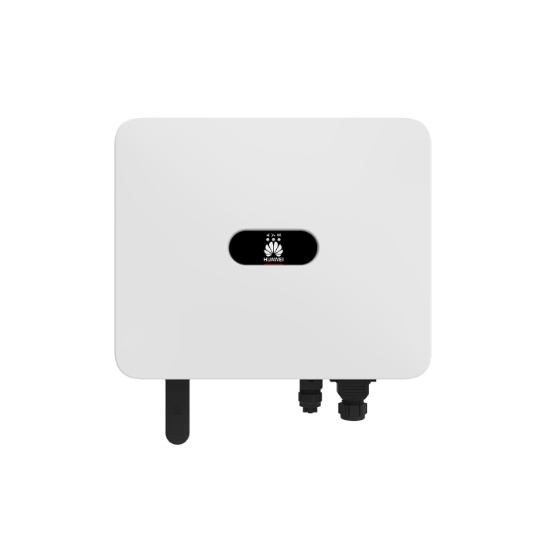

HUAWEI SMART ENERGY CONTROLLER SUN2000-12K MB0

Technical Specification

1) Efficiency

Max. efficiency: 98.4%.

European weighted efficiency: 97.9.

2) DC Input

Recommended max. PV power: 18,000 Wp.
Max. input voltage ²: 1,100 V.
Max. input current per MPPT: 30 A (two strings) / 20 A (single string).

Max. short-circuit current: 40 A.

Start-up voltage: 200 V.

MPPT operating voltage range ³: 200 V ~ 1,000 V.
Full-load MPPT voltage range: 370 V ~ 800 V.

Rated input voltage: 600 V.

Max. number of inputs: 4.

Number of MPP trackers: 2.

3) Smart String Energy Storage System Terminal

Compatible Smart String ESS: LUNA2000-5/10/15-S0.

Number of terminals: 2.
Max. charging power: 21 kW (Single string) / 25 kW (Two strings).
Max. discharge power: 13.2 kW.

Max. operating current: 26.25 A (per string).

Operating voltage range: 600 V ~ 980 V.

4) Output

Rated output power: 12,000 W.

Max. apparent power: 13,200 VA.

Max. active power (cosφ = 1): 13,200 W.

Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 240 Vac / 415 Vac; 3 W / N + PE.

Rated output current: 18.2 A / 380 Vac;17.3 A / 400 Vac;16.7 A / 415 Vac.

Max. output current: 20.2 A / 380 Vac;19.1 A / 400 Vac ;18.5 A / 415 Vac.

Rated AC grid frequency: 50 Hz / 60 Hz.

Adjustable power factor 0.8 leading ... 0.8 lagging.

Max. total harmonic distortion: ≤ 3%.

5) Feature & Protection

Overvoltage category: PV II /AC III.

Input-side disconnection device: Yes.

Anti-islanding protection: Yes.

AC over-current protection: Yes.

DC reverse-polarity protection: Yes.

DC surge protection: TYPE II.
AC surge protection: Yes, compatible with TYPE II protection class according to EN/IEC 61643-11.

DC insulation resistance detection: Yes.

Residual current monitoring unit: Yes.

Arc fault protection: Yes.

6) General Data

Operating temperature range: -25 °C ~ +60 °C (-13 °F ~ 140 °F).

Relative humidity: 0 % RH ~ 100 % RH.

Max. operating altitude: 4,000 m (13,123 ft.) (Derating above 2,000 m).

Cooling: Smart air cooling.

Display: LED indicators, Integrated WLAN + FusionSolar APP.

Communication: RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional)4G / 3G / 2G via Smart Dongle-4G (Optional); EMMA (Optional)

Weight: 21 kg.

Dimensions (W x H x D): 546 x 460 x 241.5 mm.

Protection level: IP66.

Max. number of paralleled unit(with Smart String ESS): 3.

7) Optimizer Compatibility
Compatible optimizer: SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P.

8) Standards Compliance (More Available Upon Request)
Certificates: EN/IEC62109-1, EN/IEC62109-2.

Grid connection standards: IEC61727, IEC62116, IEC61683, EN50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/IRR-TIC,Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244(UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, CEI-016, C10/C11, EN50549-2,VDE4110

Product description

1) Active Safety: AFCI Active Arcing Protection.
2) Higher Yields: Up to 30% More Energy with Optimizer¹.
3) Battery Ready: 2 Battery Terminals; Compatible with LUNA2000-S0.
