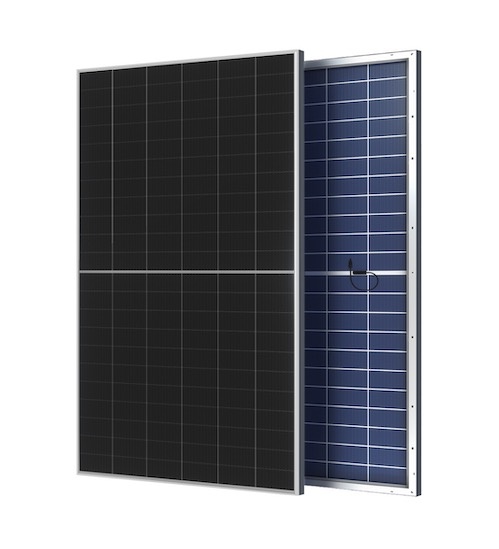

Trina Vertex TSM-DEG21C.20 665W Bifacial Glass to Glass
- Product No.:20249712810
Bifacial module with double glass and N-type TOPCON modules for maximum electricity output.
Product number:
Trina Vertex TSM-DEG21C.20 665W Bifacial Glass to Glass
Product information:
Specifications:
Module connector: MC4 EVO2/TS4
STC power: 665Wp
Colour of frame: Silver
Cell technology: bifacial
Number of cells: 132pcs half cut
Dimension of module: 2384x1303x33mm(93.86x51.30x1.30inches)
Weight: 38.3kg(84.4lb)
Cable length: 1200/1200mm
Mechanical Characteristics:
Cell Type: N type Mono-crystalline
No. of cells: 132pcs half cut
Dimensions: 2384x1303x33mm(93.86x51.30x1.30inches)
Weight: 38.3kg(84.4lb)
Front Glass: 2.0mm(0.08inches), Hight Transmission, AR Coated Heat Strengthened Glass
Back Glass: 2.0mm(0.08inches), Heat Strengthened Glass(White Grid Glass)
Frame: 33mm(1.3 inches) Anodized Aluminium Alloy
Junction Box: IP68 Rated
Protection Class: Class II
IEC Fire Type: Class C
Output Cables:
Photovoltaic Technology Cable 4.0mm2(0.006 inches2)
Portrait: 350/280mm(13.78/11.02 inches)
Length can be customized
Packging Configuration:
Modules per box: 33 pieces
Modules per 40‘ container: 594 pieces
Warranty:
1) 12 year Product Workmanship Warranty
2) 30 year linear power output warranty
3) 2% first year degradation
4) 0.45% Annual Power Attenuation
Product description:
N-type Technology:
N-type modules with Tunnel Oxide Passivating Contacts(TOPcon) technology offer lower LID/LeTID degradation and better low light performance.
Hight customer value:
1) Lower LCOE(Levelized Cost Of Energy), reduced BOS(Balance of System) cost, shorter payback time.
2) Lowest guaranteed first year and annual degradation.
3) Designed for compatibility with existing mainstream system.
Hight power up to 665W
1) Up to 21.4% module efficiency with high density interconnect techology.
2) Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection.
Hight reliability:
1) Minimized micro-cracks with innovative non-destructive cutting technology.
2) Ensured PID resistance through cell process and module material control.
3) Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas.
4) Mechanical performance up to 5400Pa positive load and 2400Pa negative load.
Hight energy yield:
1) Excellent IAM(Incident Angle Modifier) and low irradiation performance, validated by 3rd party certifications.
2) The unique design provides optimized energy production under inter-row shading conditions.
3) Lower temperature coefficient(-0.34%) and operating temperature.
4) Up to 25% additional power gain from back side depending on albedo.
Product number:
Trina Vertex TSM-DEG21C.20 665W Bifacial Glass to Glass
Product information:
Specifications:
Module connector: MC4 EVO2/TS4
STC power: 665Wp
Colour of frame: Silver
Cell technology: bifacial
Number of cells: 132pcs half cut
Dimension of module: 2384x1303x33mm(93.86x51.30x1.30inches)
Weight: 38.3kg(84.4lb)
Cable length: 1200/1200mm
Mechanical Characteristics:
Cell Type: N type Mono-crystalline
No. of cells: 132pcs half cut
Dimensions: 2384x1303x33mm(93.86x51.30x1.30inches)
Weight: 38.3kg(84.4lb)
Front Glass: 2.0mm(0.08inches), Hight Transmission, AR Coated Heat Strengthened Glass
Back Glass: 2.0mm(0.08inches), Heat Strengthened Glass(White Grid Glass)
Frame: 33mm(1.3 inches) Anodized Aluminium Alloy
Junction Box: IP68 Rated
Protection Class: Class II
IEC Fire Type: Class C
Output Cables:
Photovoltaic Technology Cable 4.0mm2(0.006 inches2)
Portrait: 350/280mm(13.78/11.02 inches)
Length can be customized
Packging Configuration:
Modules per box: 33 pieces
Modules per 40‘ container: 594 pieces
Warranty:
1) 12 year Product Workmanship Warranty
2) 30 year linear power output warranty
3) 2% first year degradation
4) 0.45% Annual Power Attenuation
Product description:
N-type Technology:
N-type modules with Tunnel Oxide Passivating Contacts(TOPcon) technology offer lower LID/LeTID degradation and better low light performance.
Hight customer value:
1) Lower LCOE(Levelized Cost Of Energy), reduced BOS(Balance of System) cost, shorter payback time.
2) Lowest guaranteed first year and annual degradation.
3) Designed for compatibility with existing mainstream system.
Hight power up to 665W
1) Up to 21.4% module efficiency with high density interconnect techology.
2) Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection.
Hight reliability:
1) Minimized micro-cracks with innovative non-destructive cutting technology.
2) Ensured PID resistance through cell process and module material control.
3) Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas.
4) Mechanical performance up to 5400Pa positive load and 2400Pa negative load.
Hight energy yield:
1) Excellent IAM(Incident Angle Modifier) and low irradiation performance, validated by 3rd party certifications.
2) The unique design provides optimized energy production under inter-row shading conditions.
3) Lower temperature coefficient(-0.34%) and operating temperature.
4) Up to 25% additional power gain from back side depending on albedo.
Certificates:
1) IEC61215/IEC61730/IEC61701/IEC62716/UL61730
2) ISO9001: Quality Managment System
3) ISO14001: Environment Management System
4) ISO14064: Greenhouse Gases Emissions Verification
5) ISO45001: Occupational Health and Safety Management System
6) PV Cycle
7) Recyclable Packaging
8) EU-28 WEEE COMPLIANT
