Products >> Solar Module >>

  • Jinko Tiger Neo JKM440N-54HL4R-440Wp Full black, bifacial

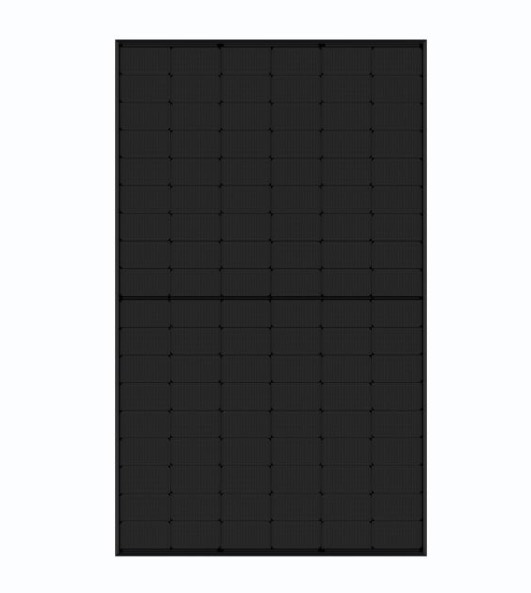

Jinko Tiger Neo JKM440N-54HL4R-440Wp Full black, bifacial

Jinko Tiger Neo JKM440N-54HL4R-440Wp Full black, bifacial


 All black Bifacial module with double glass and N-type TOPCON modules for maximum electricity output


Product number:
Jinko Tiger Neo JKM440N-54HL4R-440Wp


Product information:

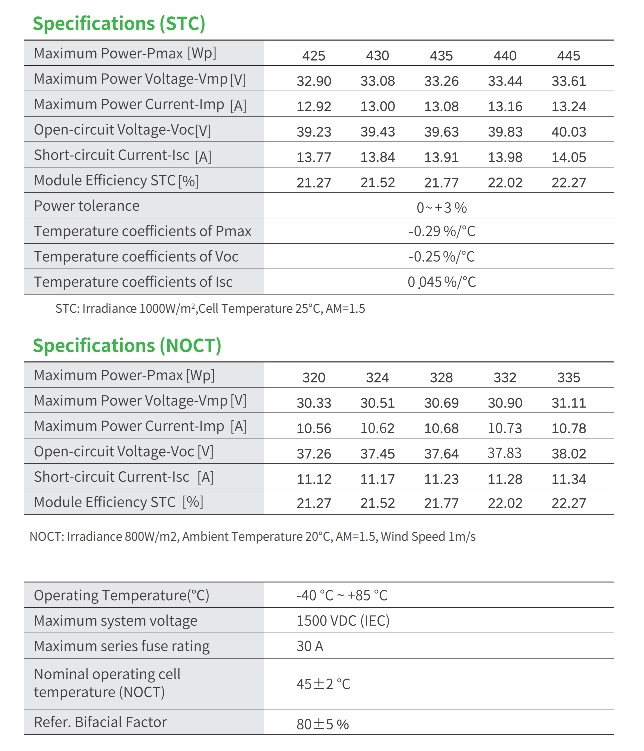

Specifications:

Module connector: EVO2
STC power: 440Wp
Colour of frame: Black
Cell technology: bifacial
Number of cells: 108 pcs half cut
Dimension of module: 1762x1134x30mm
Weight: 24.5kg
Cable length: 1200/1200mm


Mechanical Characteristics:
Cell Type: N type Mono-crystalline
No. of cells: 108 (54x2)
Dimensions: 1762x1134x30mm
Weight: 25.4kg
Front Glass: 2.0mm, Anti-Reflection Coating
Back Glass: 2.0mm, Heat Strengthened Glass
Frame: Anodized Aluminium Alloy
Junction Box: IP68 Rated
Protection Class: Class II
IEC Fire Type: Class C
Output Cables: TUV 1X4.0mm2(+); 400mm, (-): 200mm or Customized Length










































Packaging Configuration:

(Two pallets=One stack): 1792x1120x1249mm
Packing detail: 36pcs/pallets, 72pcs/stack, 936pcs/40'HQ Container


Warranty:
1) 25 year product warranty
2) 30 year linear power warranty
3) 1% first year degradation
4) 0.4% annual degradation over 30 years



Product description

N-Type Technology:
N-Type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low light performance.
HOT3.0 Technology:
N-type modules with JinkoSolar's HOT 3.0 technology offer better reliability andefficiency.
Dual-Sided power generation:
Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
Mechanical Load Enhanced:
Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load.
SMBB Technology:
Better light trapping and current collection to improve module power output and reliability.
Anti-PID guarantee:
Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.



Certificates:
1) IEC671215(2016) / IEC61730(2016)
2) IEC61701 / IEC62716 / IEC60068 / IEC62804
3) ISO9001:2015: Quality Management System
4) ISO14001:2015: Environment Management System
5) ISO45001:2018: Occupational health and safety management systems
6) PV CYCLE


Manufacturer Information:
JinkoSolar is a global leader in the solar industry. JinkoSolar sells its solar products, solutions and services in over 80 countries worldwide. JinkoSolar is a pioneer in the successful development of a vertically integrated value chain for solar products.
