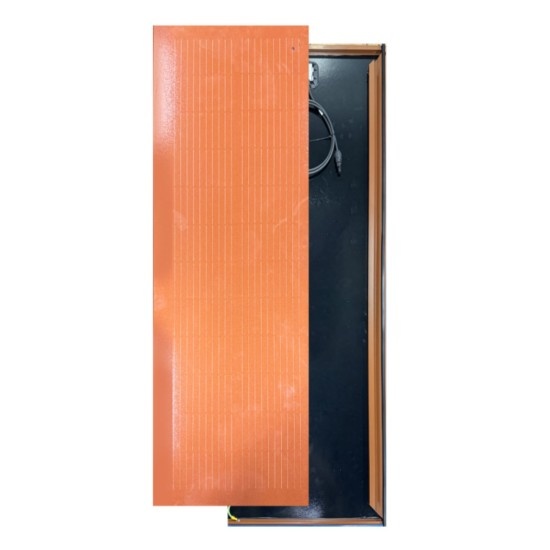

R10FL60SO

Online Inquiry

Product number:

R10FL60SO

Product description:

For building developers and residential project owners who prefer industrial architectural styles, we launch a sun-orange solar roof tile product centered on "integration of roofing materials and photovoltaic performance". It enhances buildings with the vibrant color characteristic of industrial style while transforming the roof into a clean energy production platform—upgrading the functionality and sustainability of industrial buildings.

Core Selling Points:

✅ Precise Adaptation to Architectural Aesthetics:

Features a 3.2mm double-glass structure (3.2mm glass on both front and back sides). Its sun-orange appearance aligns with the modern, dynamic style of industrial buildings, enabling direct replacement of metal or concrete roof materials commonly used in industrial plants. It retains the rugged visual identity of industrial architecture while enhancing the building’s green attributes. The 3.2mm glass material also improves the roof’s corrosion resistance, meeting the usage needs of industrial environments.

✅ Stable & High-Quality Power Generation:

Achieves a peak power of 60W under STC with a module efficiency of 12.3%, also equipped with 12 high-quality 182 PERC solar cells. Under NOCT real-world conditions, the peak power remains at 55W, satisfying the energy stability requirements of industrial buildings. The Pmax temperature coefficient of -0.38%/℃ ensures that power generation performance is less affected by temperature changes (whether in summer heat or winter cold), adapting to the long-term energy needs of industrial buildings.

✅ Strong Durability in Extreme Environments:

Operates within a temperature range of -40℃ to +85℃, suitable for harsh outdoor environments common in industrial plants. Both front and back static load capacities reach 5400Pa, withstanding heavy winds, snow loads, and other pressures in industrial areas. The IP67-rated junction box and compliance with building safety fire standards provide reliable safety guarantees for industrial building roofs and reduce long-term maintenance costs.

✅ High Flexibility in On-Site Installation:

With dimensions of 1233×434×24mm and a single-unit weight of 10kg, it adapts to the installation needs of large-span roofs in industrial plants. Standard MC4 connectors and customizable 2.5mm² cables (750mm default length) enable simultaneous completion of roof material laying and PV power station construction during new industrial plant builds or old factory roof renovations—improving the overall economic efficiency of the project.

**Electrical Specification[STC*]**
STC	Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5
Color	Sun-Orange
Rated Maximum Power(Pmax/W)	60
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	14.0
Maximum Power Current(lmp/A)	4.29
Open Circuit Voltage(Voc/V)	16.4
Short Circuit Current(lsc/A)	4.48
Module Efficiency[%]	12.3%

**Electrical Specification[NOCT*]**
NOCT	Normal Operating Cell Temperature（NOCT）：800W/㎡，20℃，AM1.5，1m/s
Color	Sun-Orange
Rated Maximum Power(Pmax/W)	55
Maximum Power Voltage(Vmp/V)	13.0
Maximum Power Current(lmp/A)	4.35
Open Circuit Voltage(Voc/V)	15.22
Short Circuit Current(lsc/A)	4.54

**Mechanical parameters**
Dimensions（mm)	123343424
Weight(kg)	10
Cell	182PERC
Number of cells	12
Front Glass（mm）	3.2
Back Glass（mm）	3.2
Maximum Load (Front/Back)	5400pa/5400pa
Junction Box	IP67
Connector	MC4
Cable Specifications	2.5mm²，750mm,Customization available
Packing Quantity	/
