R10FL85BK

Online Inquiry

Product number:

R10FL85BK

Product description:

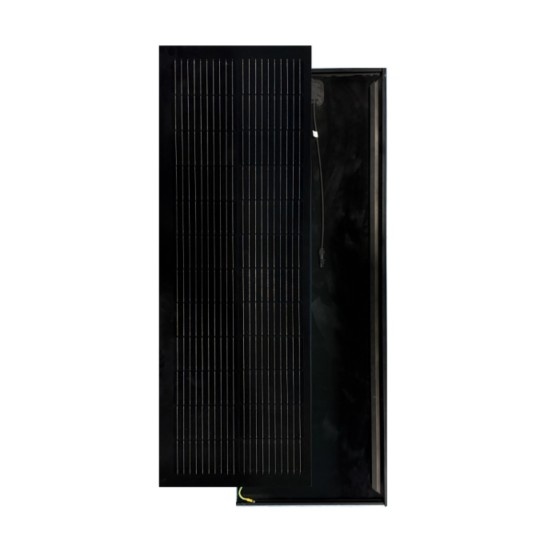

For building developers and residential project owners who favor traditional (e.g., black-tiled courtyard houses, slate-roofed villas) or industrial (e.g., exposed-steel factories, dark-facade warehouses) architectural styles — our black PV Tile achieves the seamless integration of "roof building material and photovoltaic performance". It inherits the windproof, rainproof, and decorative functions of traditional black tiles, while converting solar energy into electricity to realize the building’s self-power supply. It blends invisibly with dark-toned roofs, turning the roof into a "low-profile distributed power station" without disrupting the original understated or rugged aesthetic of the building.

Core Selling Points:

✅ High Compatibility with Architectural Aesthetics:

Adopts a 3.2mm thick double-glass structure (3.2mm glass on both front and back sides). Its black appearance highly matches traditional tile styles, allowing direct replacement of conventional roof tiles to blend seamlessly with the roof. It meets the decorative requirements of traditional buildings without disrupting the original design integrity. Additionally, the 3.2mm glass material is more durable than traditional tiles, providing long-term resistance to wind and rain erosion and extending the roof’s service life.

✅ Stable & High-Quality Power Generation:

Delivers a peak power of 85W under STC (Standard Test Conditions) with a module efficiency of 17.4%, powered by 12 high-efficiency 182 PERC solar cells. Even under NOCT (Nominal Operating Cell Temperature) real-world conditions (800W/㎡ irradiance, 20℃ ambient temperature), the peak power remains at 79W. Combined with a low Pmax temperature coefficient of -0.38%/℃, it minimizes power loss during temperature fluctuations, ensuring long-term stable clean energy supply for traditional buildings.

✅ Strong Durability in Extreme Environments:

Operates within a temperature range of -40℃ to +85℃, adapting to diverse climatic regions. Both front and back static load capacities reach 5400Pa, withstanding external impacts such as snow and hailstones. The junction box features an IP67 protection rating, and the product complies with building safety and fire protection standards—providing long-term safety guarantees for traditional building roofs.

✅ High Flexibility in On-Site Installation:

With dimensions of 1233×434×24mm and a single-unit weight of only 10kg, it is compatible with the profile structure of traditional building roofs. Equipped with standard MC4 connectors and 2.5mm² cables (750mm length, customizable), it allows simultaneous completion of roof material laying and power station construction during new house builds or roof renovations. This is more cost-effective than the "separate purchase of building materials + additional PV panel installation" model.

**Electrical Specification[STC*]**
STC	Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5
Color	Black
Rated Maximum Power(Pmax/W)	85
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	14.0
Maximum Power Current(lmp/A)	6.07
Open Circuit Voltage(Voc/V)	16.4
Short Circuit Current(lsc/A)	6.35
Module Efficiency[%]	17.4%

**Electrical Specification[NOCT*]**
NOCT	Normal Operating Cell Temperature（NOCT）：800W/㎡，20℃，AM1.5，1m/s
Color	Black
Rated Maximum Power(Pmax/W)	79
Maximum Power Voltage(Vmp/V)	13.0
Maximum Power Current(lmp/A)	6.15
Open Circuit Voltage(Voc/V)	15.22
Short Circuit Current(lsc/A)	6.44

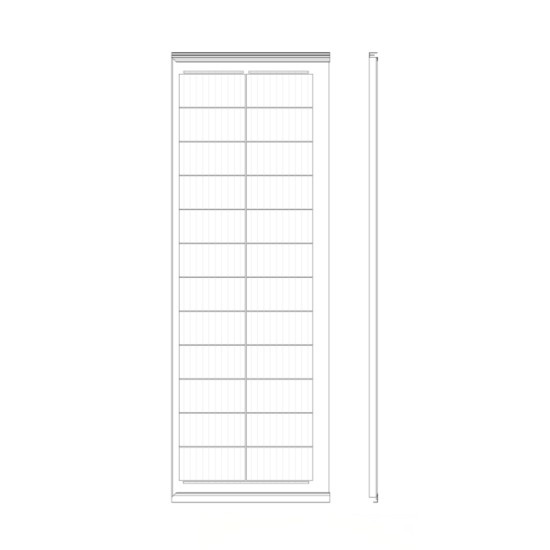

**Mechanical parameters**
Dimensions（mm)	123343424
Weight(kg)	10
Cell	182PERC
Number of cells	12
Front Glass（mm）	3.2
Back Glass（mm）	3.2
Maximum Load (Front/Back)	5400pa/5400pa
Junction Box	IP67
Connector	MC4
Cable Specifications	2.5mm²，750mm,Customization available
Packing Quantity	/
