Products >> BIPV >> Other-Photovoltaic Glass Modules

F00D256F40

Online Inquiry

Product number:

F00D256F40

Product description:

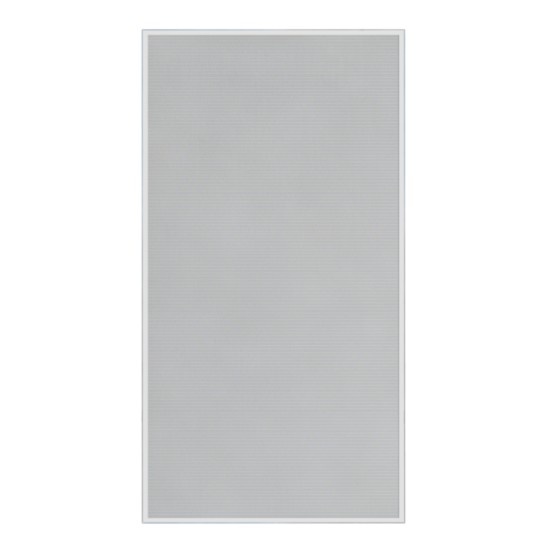

For building developers and residential project owners who favor traditional or industrial architectural styles and prioritize moderate natural lighting with reliable energy generation — our 40% light-transmittance CdTe BIPV module achieves the balanced integration of "translucency for roofs and walls with photovoltaic performance". It floods interiors with bright (but not harsh) natural light, enhancing spatial comfort while retaining the classic charm of traditional buildings (e.g., tile roof lines) and industrial facades, making it ideal for main living or public areas.

Core Selling Points:

✅ Architectural Aesthetic Compatibility：

With 40% light transmittance (bright diffused light), customizable light color tones (e.g., warm amber for traditional homes), and 6mm ultra-clear tempered glass, the module blends effortlessly with traditional residential sunroom walls, industrial-style retail storefronts, and retro community activity centers. It is suitable for installation on ground-floor curtain walls, atrium side panels, and sloped roof upper sections — the 40% transmittance reduces artificial lighting use by 50% during daytime, while the CdTe thin-film’s uniform appearance avoids disrupting the building’s aesthetic (e.g., matching industrial exposed brick textures). The glass also has anti-glare coating, preventing sunlight reflection from affecting outdoor views.

✅ Stable High-Quality Power Generation：

Delivers 256W peak power (Pmax) under STC with 8.9% module efficiency — a optimal balance between light transmission and energy output. Even with 40% light passing through, the CdTe cells’ efficient photon absorption ensures consistent power delivery; under NOCT conditions, it maintains 89% of rated power, with minimal performance drop in real use. The -0.29%/℃ Pmax temperature coefficient ensures stable operation in hot afternoons, while the weak-light response enables power generation during overcast weather — ideal for residential daily energy needs (e.g., powering appliances, lighting).

✅ Extreme Environment Durability：
Retains all rugged features of the series — -40~+85℃ operating temperature range, 5400pa/5400pa static load, IP67 junction box, Class II safety, and Class A fire rating. The 6mm thick glass resists hailstones (up to 25mm diameter) and strong winds, while the edge-sealing technology prevents water intrusion in heavy rain. It is also resistant to temperature-induced expansion/contraction, avoiding cracks that would damage the building’s appearance or performance.

✅ On-Site Installation Flexibility：
Same 2400×1200×18mm dimensions and 125kg weight as other versions, fitting traditional wooden roof frames and industrial steel supports. The MC4 connectors are compatible with most mainstream PV systems, enabling plug-and-play installation; the 1300mm long 2.5mm² cables reduce the need for extension wires. For renovation projects, it can directly replace traditional glass curtain wall panels, eliminating the need for additional structural changes — shortening construction period by 30%.

**Electrical Specification[STC*]**
STC	Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5
Light Transmittance	40%
Rated Maximum Power(Pmax/W)	256
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	101.8
Maximum Power Current(lmp/A)	2.52
Open Circuit Voltage(Voc/V)	125.5
Short Circuit Current(lsc/A)	2.78
Module Efficiency[%]	8.9%

**Mechanical parameters**
Dimensions（mm)	2400120018
Weight(kg)	125
Cell	CdTe
Front Glass（mm）	6
Back Glass（mm）	6
Maximum Load (Front/Back)	5400pa/5400pa
Junction Box	IP67
Connector	MC4
Cable Specifications	2.5mm²，1300mm,Customization available
Packing Quantity	/
