Product number:

F00D342F20

Product description:

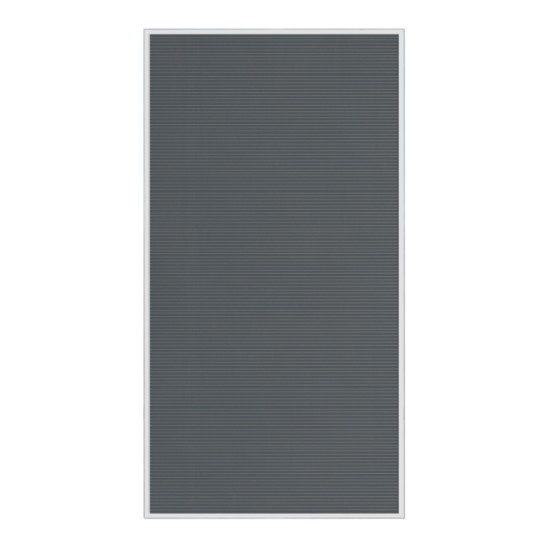

For building developers and residential project owners who favor traditional or industrial architectural styles and seek a balance between privacy protection and basic natural lighting — our 20% light-transmittance CdTe BIPV module achieves the harmonious integration of "translucency for roofs and walls with photovoltaic performance". It filters soft natural light into interiors (avoiding glare) while preserving the classic aesthetic of traditional buildings (e.g., red brick textures) and industrial facades, making it ideal for semi-private spaces.

Core Selling Points:

✅ Architectural Aesthetic Compatibility：
With 20% light transmittance (soft diffused light), customizable subtle textures, and 6mm high-clarity tempered glass, the module fits perfectly with traditional residential living room walls, industrial-style café facades, and retro community service centers. It can be installed on low-rise building curtain walls, sloped roof eaves, and exterior wall upper sections — the 20% low transmittance ensures privacy (no direct visibility from outside) while providing gentle indoor lighting, reducing artificial light use by 30%. The CdTe thin-film structure ensures uniform appearance (no dark spots), and the glass resists UV-induced yellowing for long-term aesthetic consistency.

✅ Stable High-Quality Power Generation：
Delivers 342W peak power (Pmax) under STC with 11.9% module efficiency, maintaining strong energy output despite partial light transmission. Under NOCT conditions, it retains 92% of rated power, with reliable performance in real-world scenarios. The CdTe cells’ excellent weak-light response enables stable power generation on cloudy days or at dawn/dusk, while the -0.29%/℃ Pmax temperature coefficient minimizes power loss during temperature swings (e.g., spring morning-to-afternoon changes). This ensures consistent monthly energy yield for residential or commercial use.

✅ Extreme Environment Durability：
Boasts the same rugged performance as the 0% version — operating temperature range of -40~+85℃, 5400pa/5400pa front/back static load, IP67 junction box, Class II safety protection, and Class A fire rating. It withstands harsh conditions like coastal salt spray (via anti-corrosion glass coating) and heavy rainfall, ensuring no water seepage or structural damage. Its durability matches the lifespan of traditional brick buildings, eliminating the need for frequent maintenance.

✅ On-Site Installation Flexibility：
With dimensions of 2400×1200×18mm and weight of 125kg, the module adapts to traditional brick wall openings and industrial aluminum profiles, requiring only standard mounting brackets. The MC4 universal connectors and 2.5mm² long-cable design (1300mm) enable quick connection to existing PV inverters, cutting on-site wiring time by 20%. The 20% transmittance also allows it to replace traditional opaque wall panels directly, without modifying the building’s original opening sizes — simplifying construction for renovation projects.

**Electrical Specification[STC*]**
STC	Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5
Light Transmittance	20%
Rated Maximum Power(Pmax/W)	342
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	101.8
Maximum Power Current(lmp/A)	3.36
Open Circuit Voltage(Voc/V)	125.5
Short Circuit Current(lsc/A)	3.71
Module Efficiency[%]	11.9%

**Mechanical parameters**
Dimensions（mm)	2400120018
Weight(kg)	125
Cell	CdTe
Front Glass（mm）	6
Back Glass（mm）	6
Maximum Load (Front/Back)	5400pa/5400pa
Junction Box	IP67
Connector	MC4
Cable Specifications	2.5mm²，1300mm,Customization available
Packing Quantity	/
