Product number:

F00D430F00

Product description:

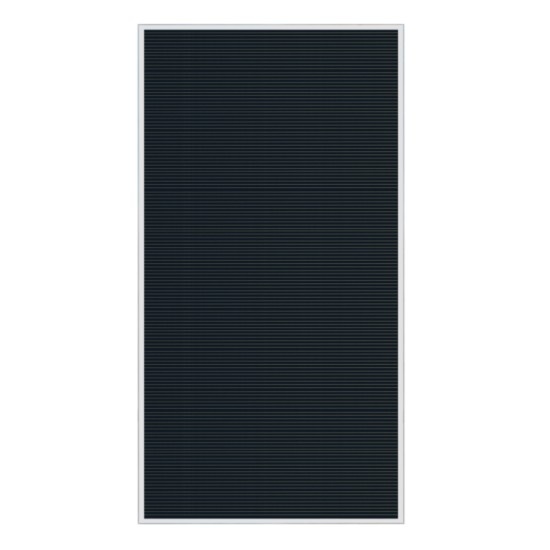

For building developers and residential project owners who favor traditional or industrial architectural styles and prioritize maximum energy output with full privacy protection — our 0% light-transmittance CdTe (Cadmium Telluride) BIPV module achieves the optimized integration of "translucency concept for roofs and walls with peak photovoltaic performance". It retains the classic texture of traditional buildings (e.g., red brick walls, solid tile roofs) and the rugged integrity of industrial facades, while delivering uncompromised clean energy generation for spaces that require no light penetration.

Core Selling Points:

✅ Architectural Aesthetic Compatibility：

With 0% light transmittance (fully opaque), customizable surface colors/textures, and 6mm high-density front/back tempered glass, the module seamlessly blends with traditional residential exterior walls, industrial factory facades, and retro building load-bearing walls. It avoids visual dark spots common in silicon-based modules (thanks to CdTe thin-film uniformity) and maintains long-term color stability, ensuring no fading or discoloration that would disrupt the building’s original style — ideal for installation on privacy-focused areas like bedroom exteriors or industrial storage wall panels.

✅ Stable High-Quality Power Generation：

Delivers 430W peak power (Pmax) under Standard Test Conditions (STC) with 14.9% module efficiency (the highest among all transmittance versions), ensuring top-tier energy output. Even under Normal Operating Cell Temperature (NOCT), it maintains consistent power delivery; the CdTe cell structure excels in weak-light environments (cloudy days, dawn, dusk), generating 15-20% more electricity than traditional silicon modules in low-irradiance scenarios. With a Pmax temperature coefficient of -0.29%/℃, it minimizes power loss caused by high-temperature fluctuations (e.g., summer heatwaves).

✅ Extreme Environment Durability：

Features an ultra-wide operating temperature range of -40~+85℃, withstanding freezing northern winters, scorching southern summers, and high-altitude low-pressure conditions. It supports 5400pa/5400pa (front/back) maximum static load, easily resisting heavy snow accumulation, strong gales (up to level 12), and accidental external impacts. Equipped with an IP67-rated junction box (dustproof and waterproof), Class II safety protection level, and Class A fire rating, it fully complies with global building safety standards, matching the 50+ year service life of traditional/industrial structures.

✅ On-Site Installation Flexibility：

Measuring 2400×1200×18mm and weighing 125kg, the module is designed to fit traditional brickwork mortars, industrial steel frames, and wooden roof trusses — no major structural reinforcement is required. Equipped with universal MC4 connectors and 2.5mm² cables (1300mm standard length, customizable), it enables quick docking with existing photovoltaic systems, shortening on-site construction time by 25% compared to conventional opaque modules. Its solid opaque design also eliminates the need for additional waterproofing layers, simplifying installation on flat industrial roofs.

**Electrical Specification[STC*]**
STC	Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5
Light Transmittance	0%
Rated Maximum Power(Pmax/W)	430
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	101.8
Maximum Power Current(lmp/A)	4.23
Open Circuit Voltage(Voc/V)	125.5
Short Circuit Current(lsc/A)	4.67
Module Efficiency[%]	14.9%

**Mechanical parameters**
Dimensions（mm)	2400120018
Weight(kg)	125
Cell	CdTe
Front Glass（mm）	6
Back Glass（mm）	6
Maximum Load (Front/Back)	5400pa/5400pa
Junction Box	IP67
Connector	MC4
Cable Specifications	2.5mm²，1300mm,Customization available
Packing Quantity	/
