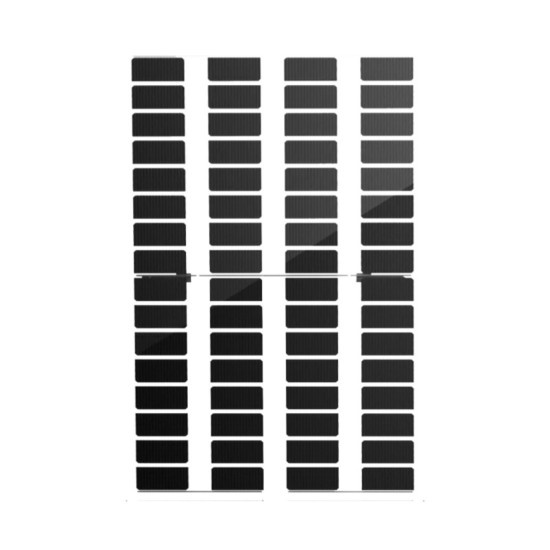

Products >> BIPV >> Translucent-Photovoltaic BIPV Module

T10D200T45

Online Inquiry

Product number:

T10D200T45

Product description:

For building developers and residential project owners who favor traditional or industrial architectural styles — our 45% light-transmittance BIPV module achieves the bright integration of "translucency for roofs and walls with photovoltaic performance". It prioritizes abundant natural light penetration (ideal for spaces needing brightness, e.g., industrial atriums, traditional residential sunrooms) while retaining the building’s stylistic charm and delivering efficient photovoltaic energy generation.

Core Selling Points:

✅ Architectural Aesthetic Compatibility

Featuring 45% high light transmittance, a translucent appearance, and 3.2mm ultra-clear front/back glass, the module enhances the transparency of traditional and industrial buildings without diluting their style. It is perfect for installation on curtain walls, atrium roofs, and sunroom ceilings — the 45% high transmittance floods interiors with natural light (reducing 40% of artificial lighting costs) while preserving the texture of traditional red brick or industrial steel structures; the glass also resists UV-induced discoloration.

✅ Stable High-Quality Power Generation

Delivers 200W peak power (Pmax) under Standard Test Conditions (STC) with 10.90% module efficiency, ensuring strong energy output. Under Normal Operating Cell Temperature (NOCT), it maintains 185W Pmax — the 45% transmittance is optimized for scattered light absorption, enabling efficient power generation even in bright indoor-atrium scenarios. Equipped with 28 pieces of 182mm PERC high-efficiency cells and a Pmax temperature coefficient of -0.38%/℃, it minimizes power loss caused by high temperatures in sun-exposed areas (e.g., industrial roof canopies).

✅ Extreme Environment Durability

Withstands extreme climates via an operating temperature range of -40~+85℃, from freezing alpine regions to high-humidity coastal areas. It supports 5400pa/5400pa (front/back) maximum static load, resisting heavy snow, strong winds, and hailstorms. With IP67-rated junction boxes (dustproof/waterproof), Class II safety protection, and Class A fire rating, it meets strict building safety standards, ensuring long-term durability even in sun-intensive installation locations.

✅ On-Site Installation Flexibility

Measuring 1767×1040×7.5mm and weighing 35kg, the lightweight module adapts to traditional wooden roof frames and industrial aluminum profiles, requiring minimal structural reinforcement. Equipped with MC4 universal connectors and 4mm² cables (300mm length, customizable), it quickly connects to existing PV systems, cutting construction time by 35%. The 45% high transmittance also allows it to replace traditional glass in atriums or sunrooms, eliminating the need for separate photovoltaic installations and simplifying construction.

**Electrical Specification[STC*]**
STC	Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5

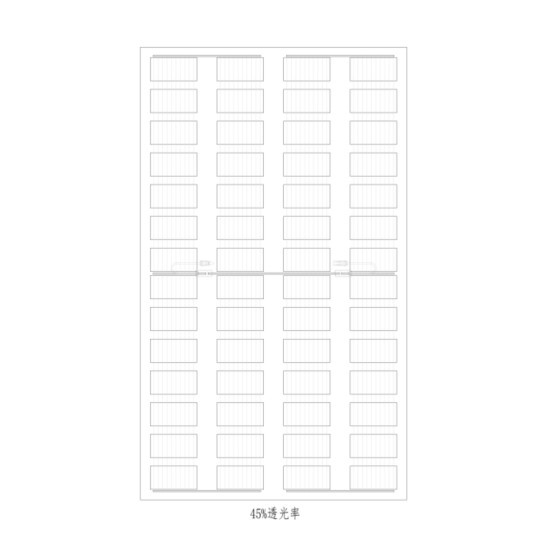

Light Transmittance	45%
Rated Maximum Power(Pmax/W)	200
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	16.4
Maximum Power Current(lmp/A)	12.17
Open Circuit Voltage(Voc/V)	19.2
Short Circuit Current(lsc/A)	12.72
Module Efficiency[%]	10.90%

**Electrical Specification[NOCT*]**
NOCT	Normal Operating Cell Temperature（NOCT）：800W/㎡，20℃，AM1.5，1m/s
Light Transmittance	45%
Rated Maximum Power(Pmax/W)	185
Maximum Power Voltage(Vmp/V)	15.2
Maximum Power Current(lmp/A)	12.34
Open Circuit Voltage(Voc/V)	17.82
Short Circuit Current(lsc/A)	12.90

**Mechanical parameters**
Dimensions（mm)	176710407.5
Weight(kg)	35
Cell	182PERC
Number of cells	28
Front Glass（mm）	3.2
Back Glass（mm）	3.2
Maximum Load (Front/Back)	5400pa/5400pa
Junction Box	IP67
Connector	MC4
Cable Specifications	4mm²，300mm,Customization available
Packing Quantity	/
