Products >> BIPV >> Translucent-Photovoltaic BIPV Module

T10D255T30

Online Inquiry

Product number:

T10D255T30

Product description:

For building developers and residential project owners who favor traditional or industrial architectural styles — our 30% light-transmittance BIPV module realizes the balanced integration of "translucency for roofs and walls with photovoltaic performance". It strikes a perfect middle ground between natural light intake and energy generation, ideal for spaces that need bright interiors (e.g., industrial-style lobbies, traditional residential living areas) while retaining the building’s original aesthetic identity.

Core Selling Points:

✅ Architectural Aesthetic Compatibility

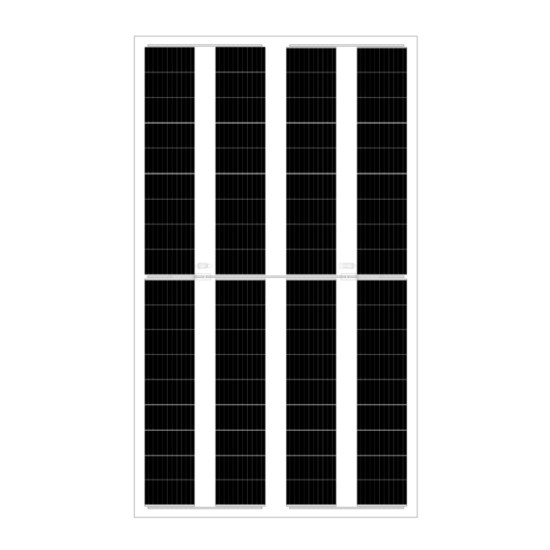

Boasting 30% light transmittance, a translucent appearance, and 3.2mm high-clarity front/back glass, the module blends effortlessly with traditional residential curtain walls, industrial commercial facades, and retro community buildings. It is suitable for installation on main walls, ground-floor canopies, and sloped roofs — the 30% moderate transmittance floods interiors with soft natural light (reducing artificial lighting needs) without compromising the building’s classic texture (e.g., industrial exposed brick, traditional tile roofs); the glass also resists yellowing for long-term visual consistency.

✅ Stable High-Quality Power Generation

Delivers 255W peak power (Pmax) under Standard Test Conditions (STC) with 13.9% module efficiency, ensuring reliable energy output. Under Normal Operating Cell Temperature (NOCT), it maintains 236W Pmax — the 30% transmittance optimizes the balance between light penetration and photovoltaic absorption, enabling efficient energy generation even in partially shaded industrial spaces. Equipped with 36 pieces of 182mm PERC cells and a Pmax temperature coefficient of -0.38%/℃, it minimizes power loss in temperature-fluctuating environments (e.g., spring/autumn temperature swings).

✅ Extreme Environment Durability

Withstands harsh climates via an operating temperature range of -40~+85℃, from cold northern winters to hot southern summers. It supports 5400pa/5400pa (front/back) maximum static load, resisting heavy snow, strong winds, and accidental impacts. Featuring IP67-rated junction boxes, Class II safety protection, and Class A fire rating, it complies with strict building safety standards, ensuring durability that matches the 50+ year lifespan of traditional/industrial structures.

✅ On-Site Installation Flexibility

With dimensions of 1767×1040×7.5mm and a weight of 35kg, the module fits traditional brickwork and industrial steel profiles, requiring no major structural modifications. Equipped with MC4 universal connectors and 4mm² cables (300mm length, customizable), it fast-tracks connection to existing PV systems, shortening on-site construction time. The 30% transmittance also eliminates the need for separate light diffusers, making it easy to install in mixed-use spaces (e.g., traditional residential ground-floor shops).

**Electrical Specification[STC*]**
STC	Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5

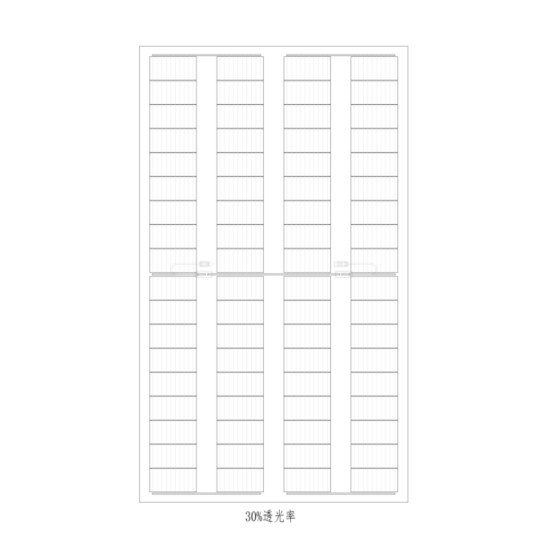

Light Transmittance	30%
Rated Maximum Power(Pmax/W)	255
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	21.1
Maximum Power Current(lmp/A)	12.17
Open Circuit Voltage(Voc/V)	24.7
Short Circuit Current(lsc/A)	12.72
Module Efficiency[%]	13.9%

**Electrical Specification[NOCT*]**
NOCT	Normal Operating Cell Temperature（NOCT）：800W/㎡，20℃，AM1.5，1m/s
Light Transmittance	30%
Rated Maximum Power(Pmax/W)	236
Maximum Power Voltage(Vmp/V)	19.6
Maximum Power Current(lmp/A)	12.34
Open Circuit Voltage(Voc/V)	22.92
Short Circuit Current(lsc/A)	12.90

**Mechanical parameters**
Dimensions（mm)	176710407.5
Weight(kg)	35
Cell	182PERC
Number of cells	36
Front Glass（mm）	3.2
Back Glass（mm）	3.2
Maximum Load (Front/Back)	5400pa/5400pa
Junction Box	IP67
Connector	MC4
Cable Specifications	4mm²，300mm,Customization available
Packing Quantity	/
