Products >> BIPV >> Translucent-Photovoltaic BIPV Module

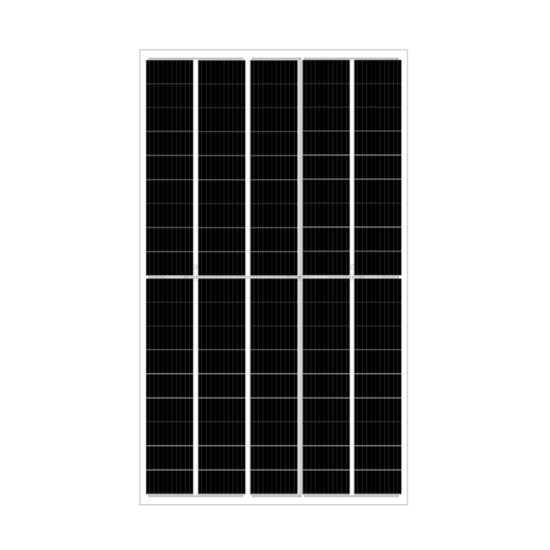

T10D320T15

Online Inquiry

Product number:

T10D320T15

Product description:

For building developers and residential project owners who favor traditional or industrial architectural styles — our 15% light-transmittance BIPV module achieves the precise integration of "translucency for roofs and walls with photovoltaic performance". It balances moderate natural light penetration with strong privacy protection, perfectly preserving the classic texture of traditional residences and the rugged charm of industrial facades while enabling efficient on-site clean energy generation.

Core Selling Points:

✅ Architectural Aesthetic Compatibility

With 15% light transmittance, a translucent appearance, and 3.2mm high-quality front/back tempered glass, the module fits seamlessly into traditional residential exteriors, industrial-style commercial walls, and retro building complexes. It is ideal for installation on sloped roofs and exterior walls (where privacy and moderate shading are needed), as the 15% low transmittance avoids excessive light glare while maintaining the building’s original stylistic integrity; the glass also ensures long-term color stability, preventing fading.

✅ Stable High-Quality Power Generation

Delivers 320W peak power (Pmax) under Standard Test Conditions (STC) with 17.4% module efficiency, ensuring consistent energy output. Even under Normal Operating Cell Temperature (NOCT), it maintains 296W Pmax — the 15% transmittance optimizes light absorption for photovoltaic conversion, minimizing energy loss in low-light environments. Equipped with 45 pieces of 182mm PERC high-efficiency cells and a Pmax temperature coefficient of -0.38%/℃, it resists power fluctuations caused by temperature changes.

✅ Extreme Environment Durability

Features an ultra-wide operating temperature range of -40~+85℃, withstanding freezing winters, scorching summers, and high-altitude climates. It supports 5400pa/5400pa (front/back) maximum static load, easily resisting snow pressure, strong winds, and external impacts. With IP67-rated junction boxes (dustproof/waterproof), Class II safety protection, and Class A fire rating, it meets global building safety standards, matching the service life of traditional/industrial building structures.

✅ On-Site Installation Flexibility

Measuring 1767×1040×7.5mm and weighing only 35kg, the lightweight module adapts to red brick, concrete, and other traditional/industrial building profiles, reducing structural load. Equipped with universal MC4 connectors and 4mm² cables (300mm length, customizable), it quickly docks with existing PV systems, cutting construction time by 30%. The 15% transmittance also eliminates the need for additional shading devices, simplifying installation on privacy-focused areas like residential bedroom walls.

**Electrical Specification[STC*]**
STC	Standard Test Conditions：Irradiation 1000W/㎡，Cell Temperature 25℃，AM1.5

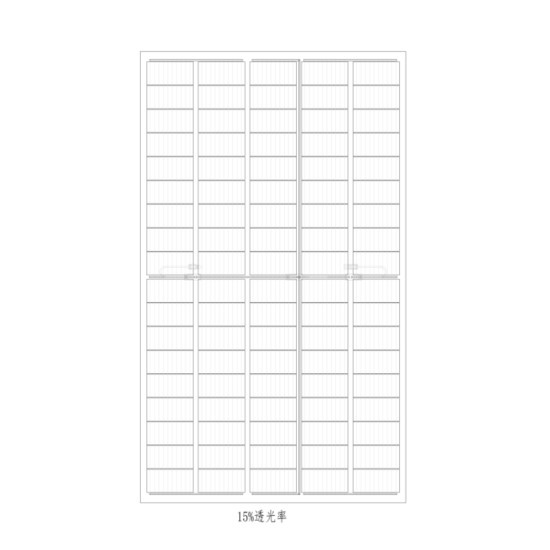

Light Transmittance	15%
Rated Maximum Power(Pmax/W)	320
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	26.3
Maximum Power Current(lmp/A)	12.17
Open Circuit Voltage(Voc/V)	30.8
Short Circuit Current(lsc/A)	12.72
Module Efficiency[%]	17.4%

**Electrical Specification[NOCT*]**
NOCT	Normal Operating Cell Temperature（NOCT）：800W/㎡，20℃，AM1.5，1m/s
Light Transmittance	15%
Rated Maximum Power(Pmax/W)	296
Maximum Power Voltage(Vmp/V)	24.4
Maximum Power Current(lmp/A)	12.34
Open Circuit Voltage(Voc/V)	28.58
Short Circuit Current(lsc/A)	12.90

**Mechanical parameters**
Dimensions（mm)	176710407.5
Weight(kg)	35
Cell	182PERC
Number of cells	45
Front Glass（mm）	3.2
Back Glass（mm）	3.2
Maximum Load (Front/Back)	5400pa/5400pa
Junction Box	IP67
Connector	MC4
Cable Specifications	4mm²，300mm,Customization available
Packing Quantity	/
