Products >> BIPV >> Colored-PV Glass Modules

C10D260AA

Online Inquiry

Product number:

C10D260AA

Product description:

For building developers and residential project owners who favor traditional (e.g., heritage buildings with metal decorative components, traditional courtyard houses with aluminum trim) or industrial (e.g., exposed-steel factories, modern industrial-style commercial spaces) architectural styles — our aluminum alloy-colored BIPV module achieves the seamless integration of "roof building material and photovoltaic performance". It replicates the sleek, durable metal texture of aluminum alloy, while undertaking the dual functions of building enclosure (windproof, rainproof) and clean energy generation. It blends naturally with the metal elements of traditional or industrial buildings, turning walls and roofs into "energy-generating building skins" without disrupting the original design aesthetic.

Core Selling Points:

✅ Architectural Aesthetic Compatibility：

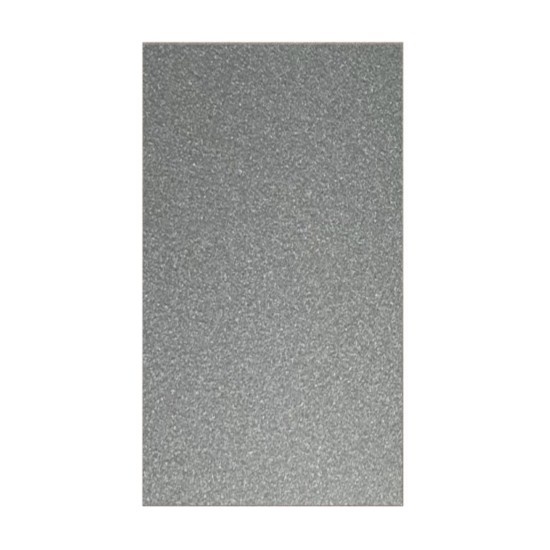

Featuring an aluminum alloy-colored surface (with anti-oxidation ceramic coating), 6mm thick front/back tempered glass, this module directly replaces traditional aluminum alloy wall panels, metal roof tiles, or industrial facade cladding. It is ideal for installation on exterior walls of traditional buildings (matching aluminum decorative strips), sloped roofs of industrial workshops, and low-rise building curtain walls — the aluminum alloy color complements steel structures, red brick textures, and wooden details, avoiding the "technical coldness" of conventional PV panels. The 6mm high-strength tempered glass is 3x more scratch-resistant than standard aluminum panels, while the anti-fading coating ensures the aluminum alloy luster remains intact for 20+ years, preserving the building’s long-term aesthetic consistency.

✅ Stable High-Quality Power Generation:

Delivers consistent energy output with 260W STC-rated peak power and a 16.3% module efficiency; maintains reliable performance under real-world NOCT conditions with a 240W peak power. Equipped with 40 premium 182PERC cells, paired with a -0.38%/℃ Pmax temperature coefficient, ensuring minimal power loss in temperature fluctuations for steady energy yield.

✅ Extreme Environment Durability:

Built to withstand harsh climate and structural pressure: wide operating temperature range of -40℃ to +85℃, 5400Pa front/back maximum static load for wind and snow resistance; IP67-rated junction box, Class II safety protection level and Class A fire rating, fully complying with strict building safety and durability standards.

✅ Flexible On-Site Installation:

Optimized dimensions of 1600×1000×14mm and 56kg weight fit most brick building profiles; standard MC4 connectors enable quick connection to existing solar systems, 4mm² 300mm standard cables or customizable specifications reduce on-site construction time and adapt to various installation scenarios of brick structure buildings.

Explore the detailed technical specifications below to learn more about the performance of this aluminum alloy texture BIPV module for your traditional or industrial style building project.

**Electrical Specification[STC*]**
STC	Standard Test Conditions: Irradiation 1000W/m², Cell Temperature 25℃, AM1.5
Color	Aluminum alloy
Rated Maximum Power(Pmax/W)	260
Power Tolerance	5%
Maximum Power Voltage(Vmp/V)	46.8
Maximum Power Current(lmp/A)	5.56
Open Circuit Voltage(Voc/V)	54.8
Short Circuit Current(lsc/A)	5.81
Module Efficiency[%]	16.3%

**Electrical Specification[NOCT*]**
NOCT	Normal Operating Cell Temperature（NOCT）：800W/㎡，20℃，AM1.5，1m/s
Color	Aluminum alloy
Rated Maximum Power(Pmax/W)	240
Maximum Power Voltage(Vmp/V)	43.4
Maximum Power Current(lmp/A)	5.64
Open Circuit Voltage(Voc/V)	50.85
Short Circuit Current(lsc/A)	5.89

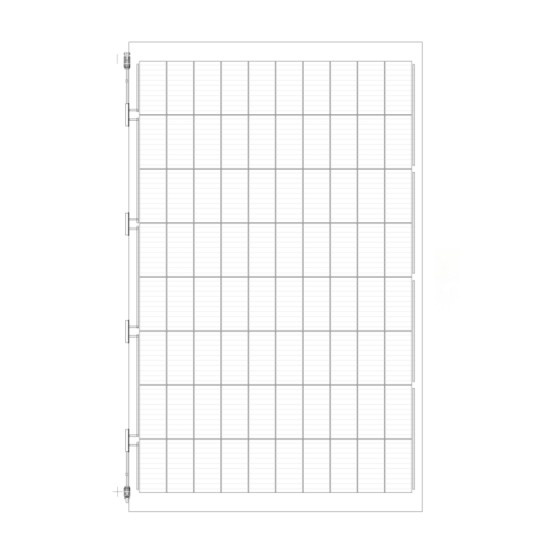

**Mechanical parameters**
Dimensions（mm)	1600100014
Weight(kg)	56
Cell	182PERC
Number of cells	40
Front Glass（mm）	6
Back Glass（mm）	6
Junction Box	IP67
Connector	MC4
Cable Specifications	4mm²，300mm,Customization available
Packing Quantity	/
