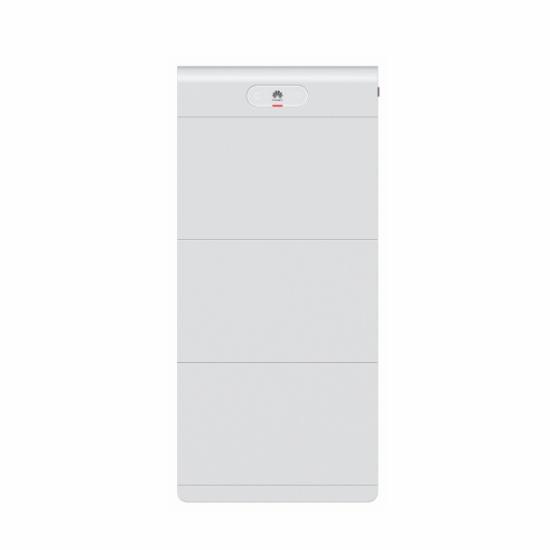

HUAWEI SMART STRING ENERGY STORAGE SYSTEM LUNA2000-7/14/21-S1
- Product No.：2024911205439
HUAWEI SMART STRING ENERGY STORAGE SYSTEM LUNA2000-7/14/21-S1
Technical Specification
1) Performance
Technical Specification
1) Performance
Power module: LUNA2000-10KW-C1.
Number of power modules: 1.
Battery module: LUNA2000-7-E1.
Number of power modules: 1.
Battery module: LUNA2000-7-E1.
Battery module energy: 6.9 kWh.
Number of battery modules: 2.
Battery usable energy 1: 13.8 kWh .
Max. charging & discharging power: 7 kW.
Max. charging & discharging power: 7 kW.
Operating voltage range (single-phase system): 350 ~ 560 V.
Operating voltage range (three phase system): 600 ~ 980 V.
2) Communication
Display: SOC status indicator, LED indicator.
Communication 2: RS485/FE/CAN.
3) General SpecificationDimensions (W x D x H): 590 mm x 255 mm x 870 mm.
Weight (Floor stand toolkit included): 148 kg.
4) Standards Compliance (More Available Upon Request)
Certificates: CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS.
5) Ordering and Deliverable Part
Available for ordering 10: LUNA2000-7-E1, LUNA2000-10KW-C1, Wall Mounting Bracket for LUNA2000-7/14/21-S1.
Weight (Floor stand toolkit included): 148 kg.
Power module dimension (W x D x H): 590 mm x 255 mm x 150 mm.
Power module weight: 10 kg.
Battery module dimensions (W x D x H): 590 mm x 255 mm x 360 mm.
Battery module weight 3: 68 kg (110.2 lb) 2.
Installation: Floor stand (standard), Wall mount (optional).
Operating temperature 4: –20°C to +55°C (–4°F to +131°F).
Max. operating altitude 5: 4,000 m (13,123 ft.) (Derating above 2,000 m).
Environment 6: Outdoor / Indoor.
Relative humidity: 5% ~ 95%.
Cooling: Natural convection.
IP rating: IP 66.
Noise emission: < 29 dB 7.
Cell technology: Lithium-iron phosphate (LiFePO4)
Scalability 8: Max. 4 systems in parallel operation.
Compatible inverters 9: SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-8/10K-LC0 SUN2000-3/4/5/6/8/10KTL-M1 , SUN2000-12/15/17/20/25K-MB0.
4) Standards Compliance (More Available Upon Request)
Certificates: CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS.
5) Ordering and Deliverable Part
Available for ordering 10: LUNA2000-7-E1, LUNA2000-10KW-C1, Wall Mounting Bracket for LUNA2000-7/14/21-S1.
Product description
1) Flexible Capacity: 6.9 kWh per Battery Module Scalable from 6.9 kWh to 20.7 kWh per Group Max. 4 Groups with 82.8 kWh for an Inverter 8.
2) More Usable Energy: Module+ Architecture, Built-in Energy Optimizer Ultra-long Service Time 100% Depth of Discharge.
3) 5-layer Safety Protection: Cell-level, Electrical-level, Structural-level Active Protection, Emergency Protection.
4) Ultimate Use Experience: -20 ℃ to +55℃ Operating Temperature Max 10.5kW Charging & Discharging Power per Group Super Quiet Operation.
5) Easy Installation: Cable Free Connection Between Modules Horizontal Adjustment Design Quick Commissioning.
6) Aesthetically Pleasing Design: Breathing Star Ring Display Silky Curve Design Simplistic and Borderless.
